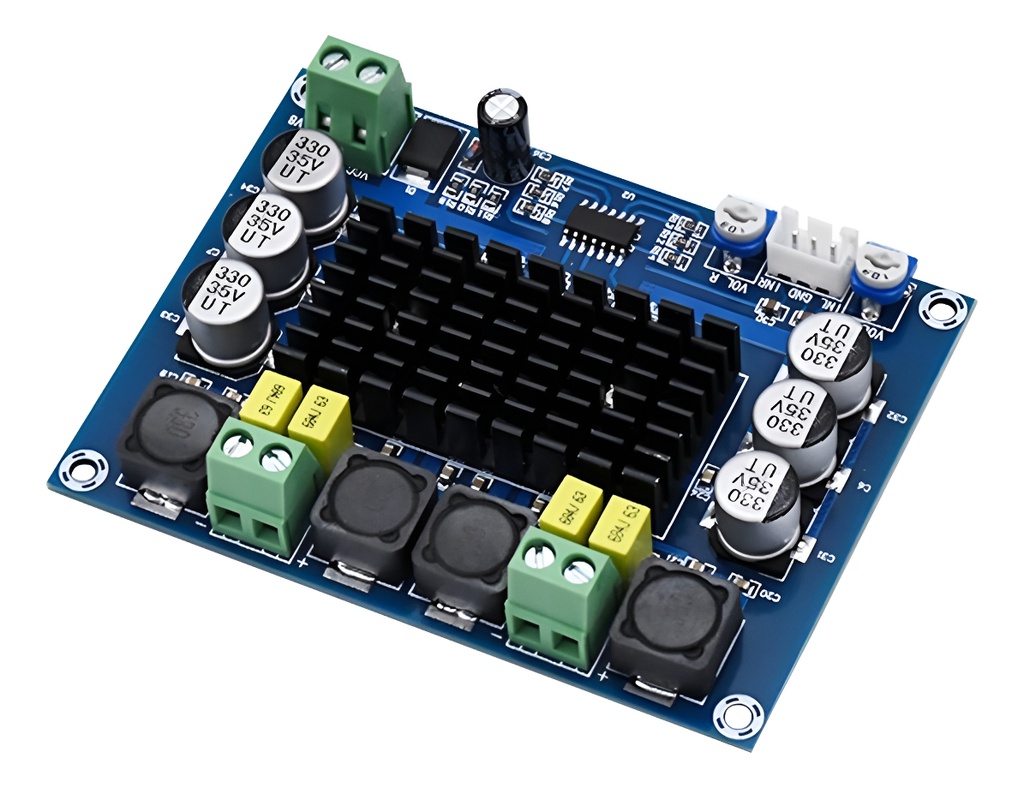

AMPLIFICADOR DIGITAL 120W+120W
Chip type TPA3116D2*1
Output voltage DC12--26V (recommended using 24V)
Output power Max 2*120W
Signal to noise ratio 100dB
Vocal tract number Dual channel
Appearance size About 92*68*17mm
Collocation of the PCB:
1>. Before the preset level of operational amplifier.
2>. TPA3116D2 amplifier chip.
3>. Efficient array radiator
4>. Chip inductor
5>. Military grade PCB
1>. Power supply: use DC 12-26V voltage power supply (recommend using 24V)
2>. Audio input: small 3P terminal input and about 30 cm dedicated audio terminal line. Easy to use.
3>. Power output: please connect the speaker to the OUT output of the board. Pay attention to positive and negative poles! 4 ohm speakers are recommended
4>. Volume adjustment: the potentiometer on both sides of the audio input terminal corresponds to the left and right sound tracks respectively. Rotate the volume with a screwdriver.
